Design of the hCD3ε/hCD28 mouse

The double-humanized CD3ε/CD28 model was generated from intercrossing hCD3ε and hCD28 mice.

The CD3ε humanized model was developed to express the human epitope of the CD3ε chain, which is recognized by T-cell engagers (clone SP34). The rest of the extracellular domain is murine to preserve the amino acids involved in the interaction with CD3γ and CD3δ. Similarly, the transmembrane domains and the intracellular domains are murine to enable salt bridge interaction, interaction with the CD3ζ, and the signaling into mouse cells.

The humanized CD28 model, developed by Knockin at the mouse CD28 locus, expresses a chimeric CD28 with a human extracellular and murine transmembrane and intracellular domains. hCD28 expression displays a physiological regulation and expression pattern. This double-humanized model enables assessment of both compounds targeting human CD3ε and/or human CD28 in immunocompetent mice.

Applications in immuno-oncology

The hCD3ε/hCD28 mouse enables the in vivo efficacy assessment and profiling of immuno-oncology agents targeting the human T-cell engager CD3ε(SP-34) and/or the immune checkpoint CD28 in fully immunocompetent mice.

hCD3ε/hCD28 features

  • Extracellular CD3ε N-terminal epitope is humanized
  • Conserved and functional interaction of CD3γ, CD3δ and CD3ζ subunits
  • The CD28 extracellular domain is entirely humanized
  • Physiological regulation and expression pattern of CD3ε and human CD28
  • Fully functional mouse immune system

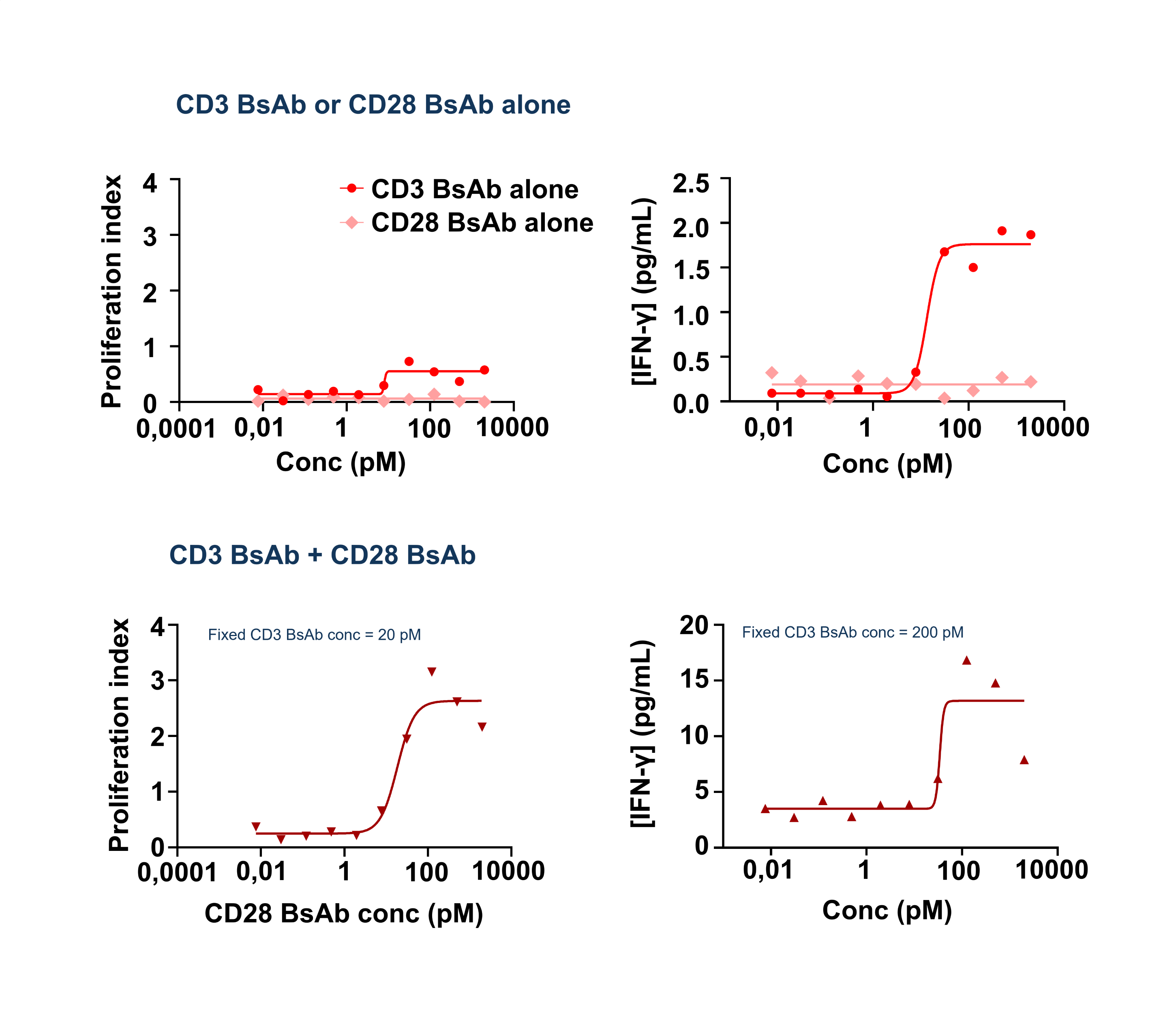

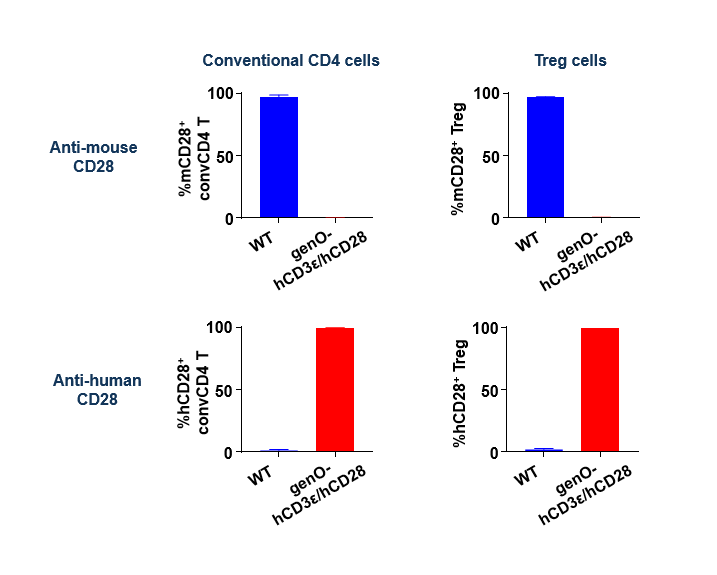

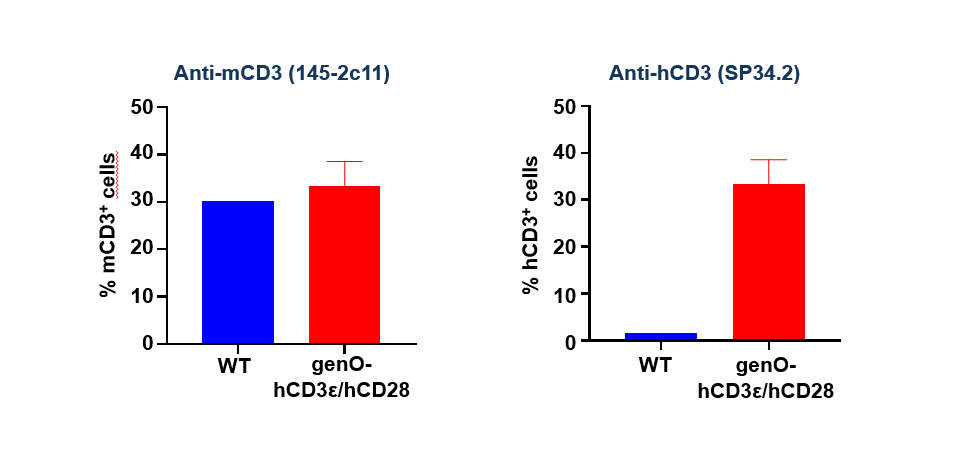

Validation
